Description

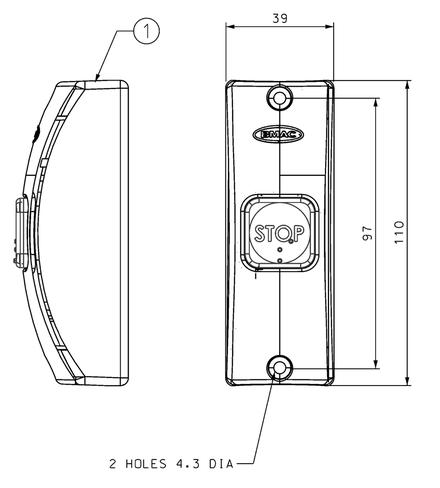

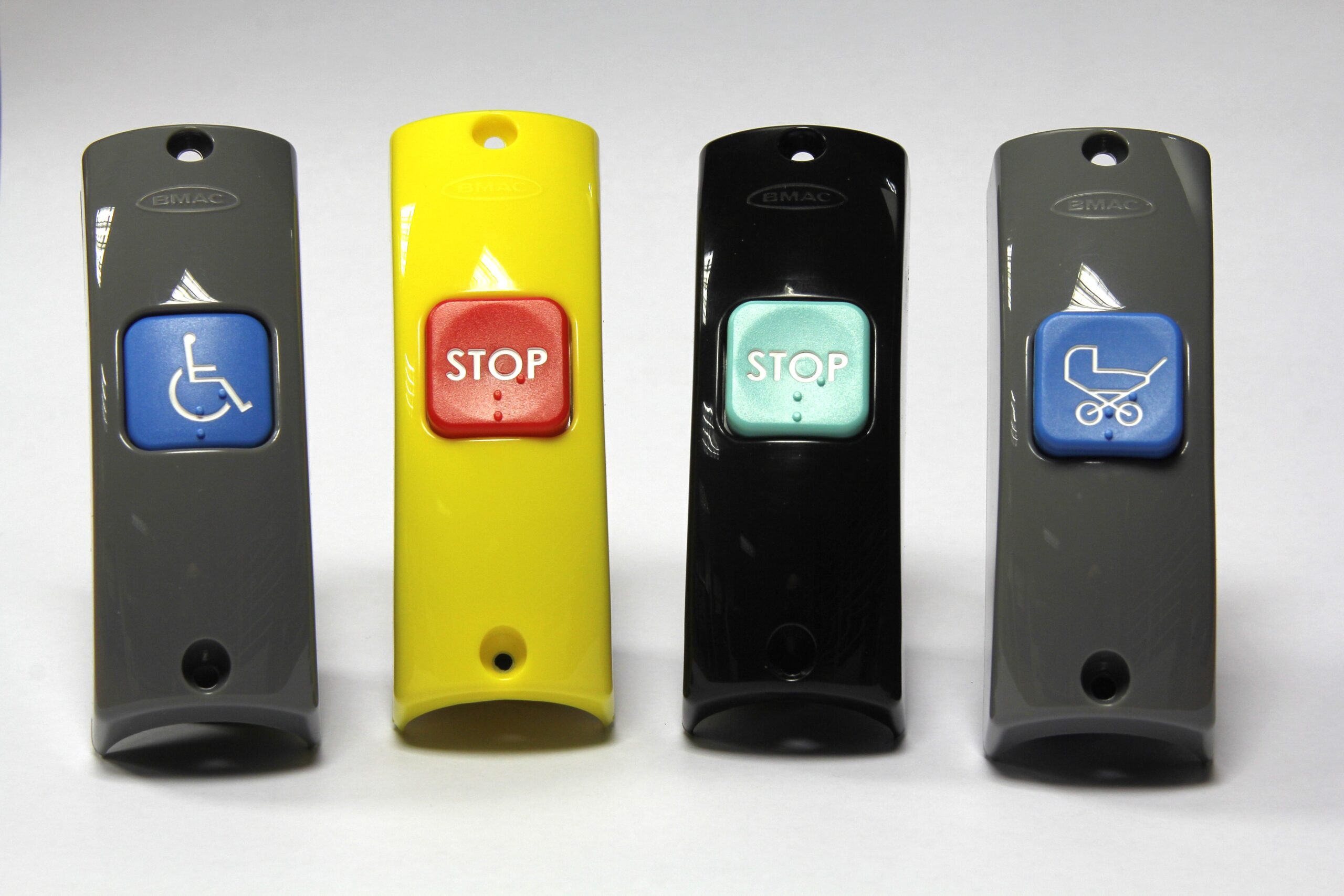

BMAC’s Wireless Bell Push technology can be available to fit to 35mm diameter stanchions in both horizontal and vertical orientations, as well as wall panel mounted variants using dedicated blanking inserts per bell push, and passenger seat mounted designs. Moulded end inserts cater for wall panel mounted bell pushes, safeguarding a simple solution regarding fitting to flat planes (see Additional Accessories & Equipment below).

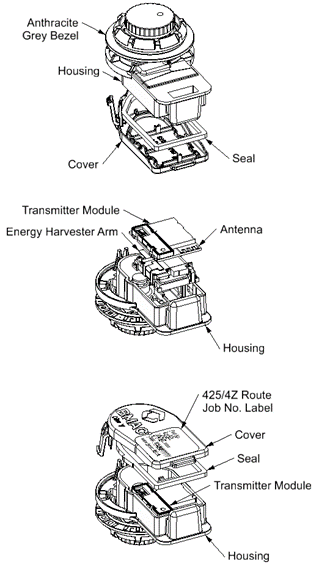

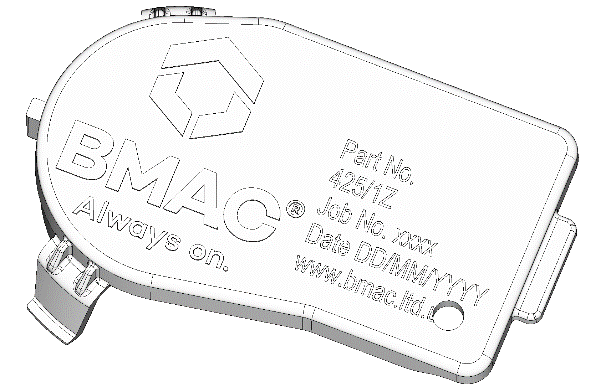

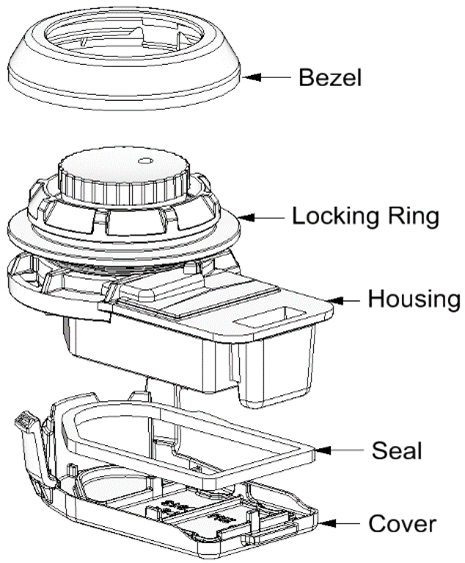

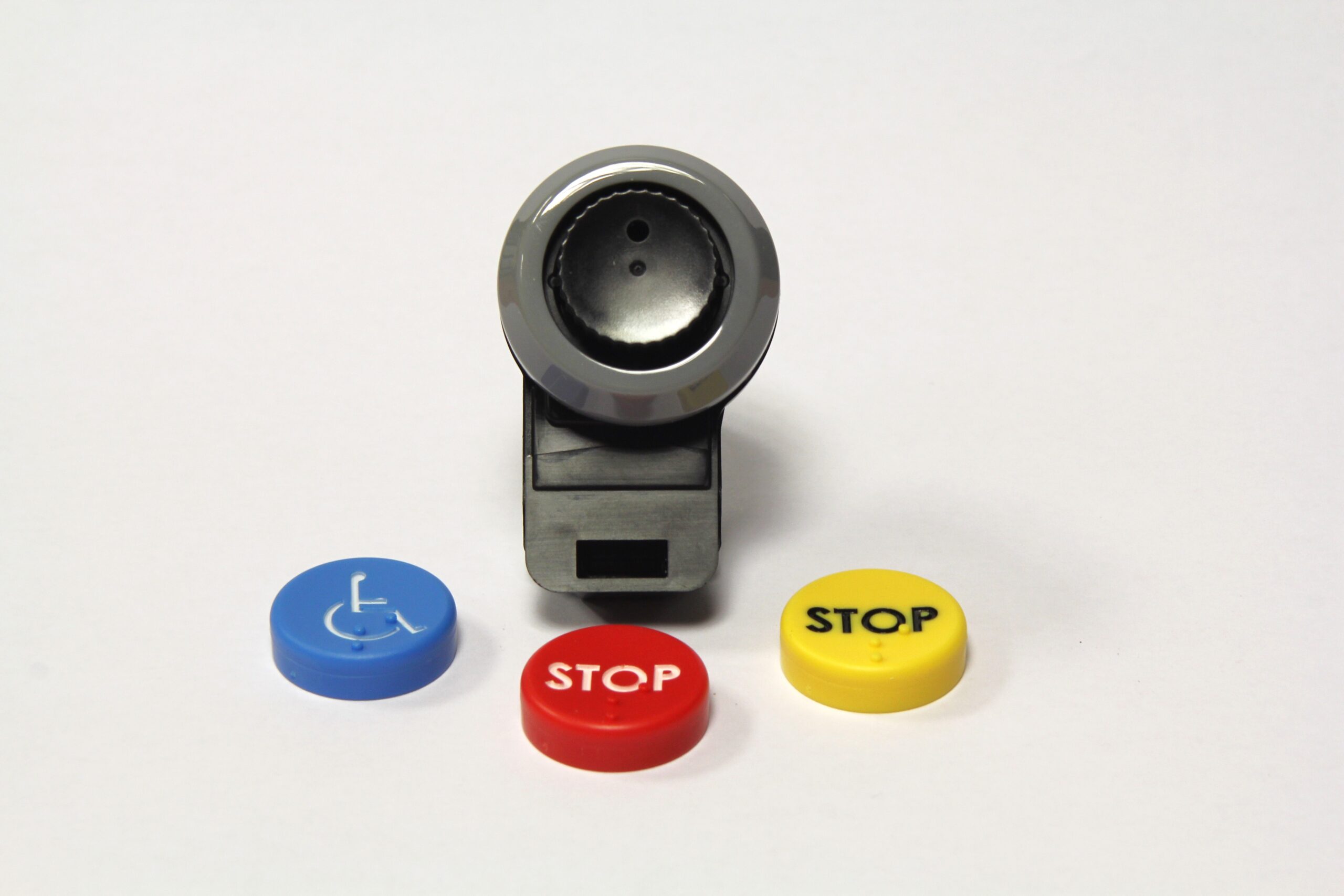

The 425 Series Seat Back Wireless Bell Push options are supplied as either an 868 MHz or 2.4 GHz Seat Back Body along with required Button separately in kit format with instructions for fitment to vehicle included. This is because the Seat Back WBP edition is either fitted behind and through the seat or panel rather than onto stanchion.

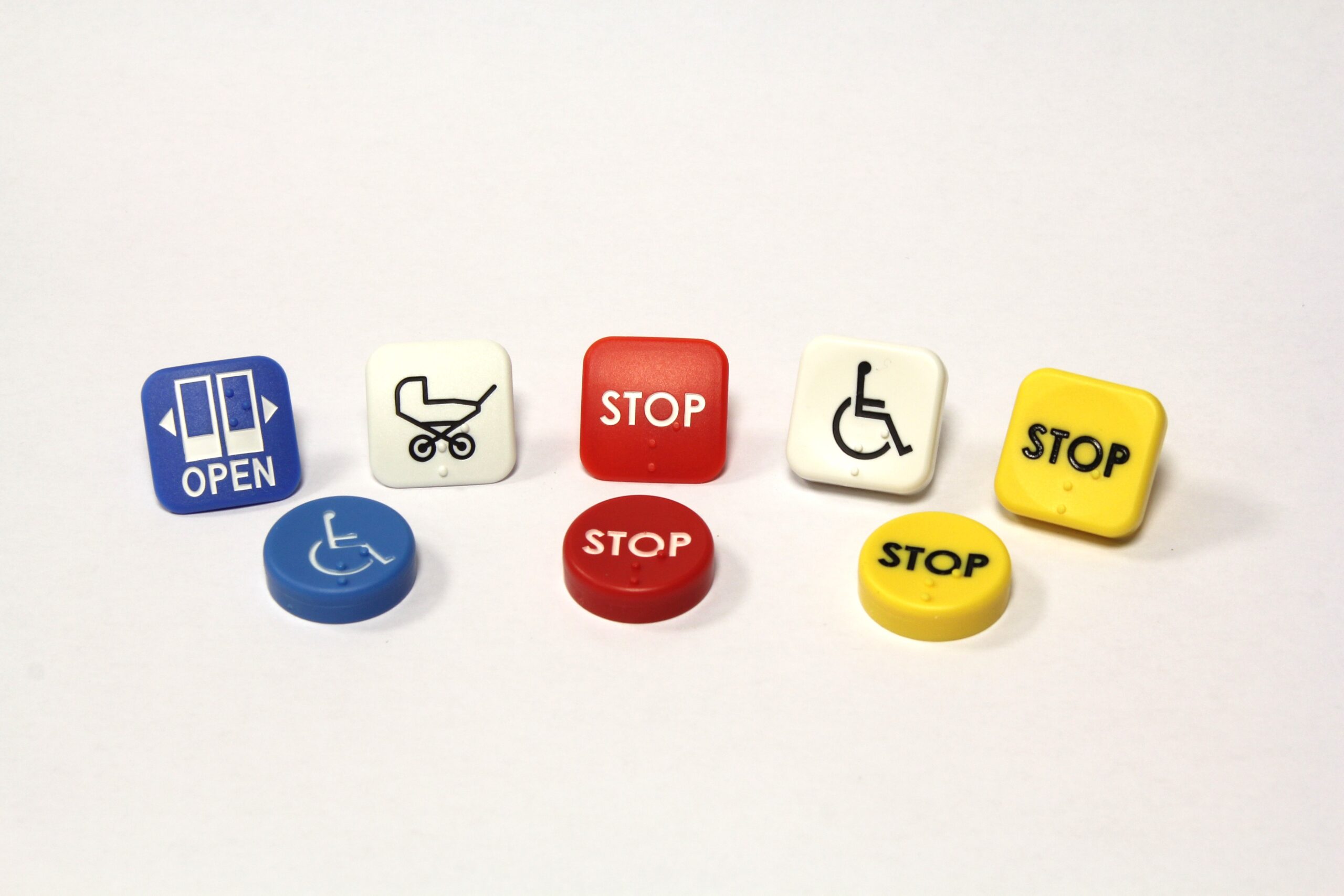

Seat Back Wireless Bell Push part numbers are listed below. The same suite of buttons are available as with the 420/424 Series.
| Product | Frequency | Description | |
| 425/1Z | 2.4 GHz | Seat Back Wireless Bell Push | |
| 425/4Z | 2.4 GHz | Seat Back Wireless Bell Push – Anthracite Grey Bezel | |
| 425/5Z | 868 MHz | Seat Back Wireless Bell Push | |
| 425/8Z | 868 MHz | Seat Back Wireless Bell Push – Anthracite Grey Bezel | |
Additional Accessories & Equipment

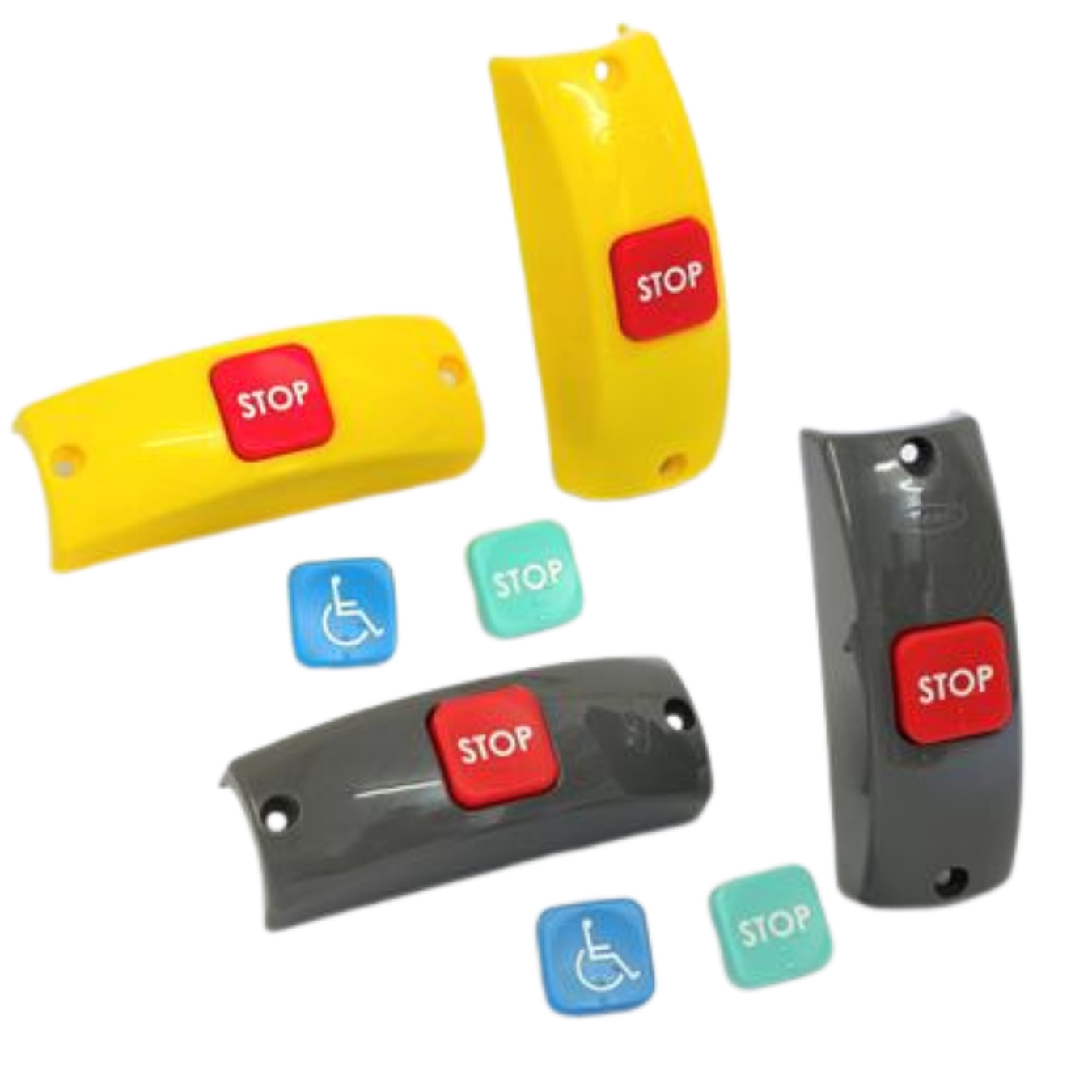

Surface Mount Inserts
WBP products that require mounting to wall panels require 2off additional moulded end inserts to cater for fitting to the flat plane, available inserts are listed below:
| Product | Description |
| 420/19G | Surface Mount Insert – Grey |
| 420/19Y | Surface Mount Insert – Yellow |
| 420/19B | Surface Mount Insert – Black |
Receiver Modules
A Receiver Module is required to be fitted to each vehicle that contains a BMAC Wireless Bell Push product. This allows the interface between the Bell Push and the vehicle management system.
| Product | Frequency | Description | |
| 422-00 | 868 MHz | Wireless Receiver Interface Module (Unprogrammed) | |
| 422-01 | 868 MHz | Wireless Receiver Interface Module | |
| 422-02 | 868 MHz | Wireless Receiver Interface Module (Fast Response) | |
| 422-03 | 868 MHz | Wireless Receiver Interface Module (Fast Resp, 30 Channel) | |
| 422-04 | 868 MHz | Wireless Receiver Interface Module (Fast Resp, 100 Channel) | |
| 424-00 | 2.4 GHz | Wireless Receiver Interface Module (Unprogrammed) | |
| 424-01 | 2.4 GHz | Wireless Receiver Interface Module (30 Channel) | |
| 424-02 | 2.4 GHz | Wireless Receiver Interface Module (100 Channel) | |
| 424FR-01 | 2.4 GHz | Wireless Receiver Interface Module (Fast Resp, 30 Channel) | |
| 424FR-02 | 2.4 GHz | Wireless Receiver Interface Module (Fast Resp, 100 Channel) | |
Power Lead Extension
The Power Lead Extension, product 424/13Z, has been designed to enable vehicle builders / maintainers the flexibility to programme wireless bell push on vehicles whist not having to remove the bell push from its location on the vehicle.
By simply removing the vehicle mounted bell push receiver module, plug the 6-way housing into the vehicle receiver module electrical connector port and connect the 6-way receptacle end into the receiver module. With the vehicle power applied this allows the programmer the freedom to move round the vehicle and pair the bell push to the receiver whilst in situ. Once the task is completed disconnect the power lead extension and re-install the receiver module.
